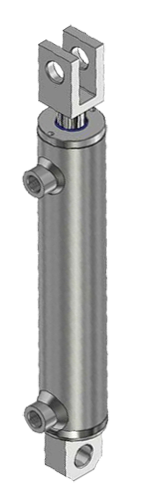

Standard Clevis Mounted Hydraulic Cylinders

At Hydraulics 2U, we offer a full range of clevis mount hydraulic cylinders for a range of manufacturers, to ensure you get the products most suited to your needs. All our hydraulic cylinders with clevis mount are manufactured to the highest standards to provide years of trouble-free service.

Bore sizes range from 32mm - 100mm bore, and produce 1.6 - 16 tons of force at 210 BAR (3000 PSI).


SCROLL DOWN TO FIND THE CYLINDER SIZE YOU REQUIRE

PLEASE NOTE:- Delivery for these cylinders is generally 2 - 3 weeks although it may be possible to speed this up in emergency situations, please contact us for faster delivery.

1.6 Ton Clevis Mount Hydraulic Cylinders (TMCL-32-20)

1.6 Ton Clevis Mount Hydraulic Cylinders (TMCL-32-20)

This Hydraulic Cylinder will produce a maximum of 1.6 Tons on its Push side and 1 Ton on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 32mm and the Rod Diameter is 20mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
50mm - £98.00100mm - £104.00150mm - £109.00200mm - £115.00
250mm - £121.00300mm - £127.00400mm - £138.00500mm - £150.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


2.5 Ton Clevis Mount Hydraulic Cylinders (2 Ton Pull) (TMCL-40-20)

2.5 Ton Clevis Mount Hydraulic Cylinders (2 Ton Pull) (TMCL-40-20)

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side and 1.9 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 20mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
100mm - £107.00150mm - £113.00200mm - £120.00250mm - £137.00
300mm - £132.00350mm - £138.00400mm - £145.00450mm - £151.00
500mm - £156.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


2.5 Ton Clevis Mount Hydraulic Cylinders (1.5 Ton Pull) (TMCL-40-25)

2.5 Ton Clevis Mount Hydraulic Cylinders (1.5 Ton Pull) (TMCL-40-25)

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side and 1.5 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 25mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
100mm - £111.00150mm - £118.00200mm - £125.00250mm - £133.00
300mm - £140.00350mm - £147.00400mm - £154.00450mm - £160.00
500mm - £169.00550mm - £176.00600mm - £184.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Clevis Mount Hydraulic Cylinders (3 Ton Pull) (TMCL-50-25)

4 Ton Clevis Mount Hydraulic Cylinders (3 Ton Pull) (TMCL-50-25)

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side and 3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 25mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
100mm - £128.00150mm - £135.00200mm - £142.00250mm - £150.00
300mm - £158.00350mm - £165.00400mm - £173.00450mm - £108.00
500mm - £188.00550mm - £195.00600mm - £204.00800mm - £238.00
1000mm - £250.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Clevis Mount Hydraulic Cylinders (2 Ton Pull) (TMCL-50-30)

4 Ton Clevis Mount Hydraulic Cylinders (2 Ton Pull) (TMCL-50-30)

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side and 2.6 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 30mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
150mm - £143.00200mm - £149.00250mm - £155.00300mm - £167.00
350mm - £176.00400mm - £184.00450mm - £193.00500mm - £200.00
550mm - £210.00600mm - £219.00800mm - £253.001000mm - £315.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Clevis Mount Hydraulic Cylinders (4.5 Ton Pull) (TMCL-60-30)

6 Ton Clevis Mount Hydraulic Cylinders (4.5 Ton Pull) (TMCL-60-30)

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side and 4.4 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 30mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
100mm - £155.00150mm - £170.00200mm - £177.00250mm - £187.00
300mm - £195.00350mm - £205.00400mm - £212.00450mm - £222.00
500mm - £225.00550mm - £240.00600mm - £248.00800mm - £284.00
1000mm - £320.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Clevis Mount Hydraulic Cylinders (3 Ton Pull) (TMCL-60-40)

6 Ton Clevis Mount Hydraulic Cylinders (3 Ton Pull) (TMCL-60-40)

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side and 3.2 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
200mm - £203.00250mm - £214.00300mm - £225.00350mm - £237.00
400mm - £248.00450mm - £260.00500mm - £272.00550mm - £283.00
600mm - £295.00800mm - £340.001000mm - £385.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6.5 Ton Clevis Mount Hydraulic Cylinders (TMCL-63-40)

6.5 Ton Clevis Mount Hydraulic Cylinders (TMCL-63-40)

This Hydraulic Cylinder will produce a maximum of 6.5 Tons on its Push side and 3.8 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 63mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
200mm - £202.00250mm - £212.00300mm - £225.00350mm - £237.00
400mm - £248.00450mm - £260.00500mm - £272.00550mm - £283.00
600mm - £295.00800mm - £340.001000mm - £380.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


8 Ton Clevis Mount Hydraulic Cylinders (6 Ton Pull) (TMCL-70-35)

8 Ton Clevis Mount Hydraulic Cylinders (6 Ton Pull) (TMCL-70-35)

This Hydraulic Cylinder will produce a maximum of 8 Tons on its Push side and 6 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 70mm and the Rod Diameter is 35mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
100mm - £185.00150mm - £196.00200mm - £208.00250mm - £218.00
300mm - £230.00350mm - £240.00400mm - £250.00450mm - £262.00
500mm - £273.00550mm - £284.00600mm - £305.00800mm - £340.00
1000mm - £384.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


8 Ton Clevis Mount Hydraulic Cylinders (5 Ton Pull) (TMCL-70-40)

8 Ton Clevis Mount Hydraulic Cylinders (5 Ton Pull) (TMCL-70-40)

This Hydraulic Cylinder will produce a maximum of 8 Tons on its Push side and 5.3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 70mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
200mm - £217.00250mm - £230.00300mm - £240.00350mm - £252.00
400mm - £265.00450mm - £276.00500mm - £288.00550mm - £300.00
600mm - £312.00800mm - £360.001000mm - £407.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


10 Ton Clevis Mount Hydraulic Cylinders (7 Ton Pull) (TMCL-80-40)

10 Ton Clevis Mount Hydraulic Cylinders (7 Ton Pull) (TMCL-80-40)

This Hydraulic Cylinder will produce a maximum of 10 Tons on its Push side and 7.8 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 80mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
200mm - £285.00250mm - £297.00300mm - £308.00400mm - £330.00
500mm - £353.00600mm - £375.00800mm - £420.001000mm - £464.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE
