ATOS Pilot Operated Check Valve (HR Range)

ATOS Pilot Operated Check Valve (HR Range)

ATOS CETOP 3 Pilot Operated Check Valve

This module will provide a locking feature which holds oil against the check valve. Lock is released when oil is passed through the opposite A or B line by way of the pilot.

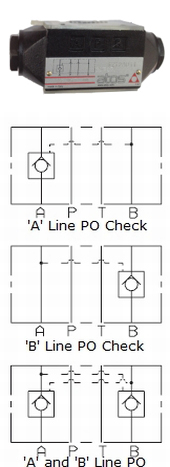

Please select the required version, Check on either A or B Line or the Double Acting Version which checks on A and B Lines as per the Symbols below image.

350 BAR Maximum Working Pressure - 60LPM Maximum Flow

atos hydraulic valves, atos valve, atos po check valve, atos check module, stos HR Valve, Atos HR valve, Atos HR, cetop 3 check valve, cetop 3 check module, hydraulic valves, hydraulic valve modules, hydraulic check valve, hydraulic check module

Check Valve Versions
'A' Line (HR-013) £104.00'B' Line (HR-014) £104.00'A' and 'B' Line (HR-012) £114.00

ATOS Pressure Relief Module - Direct Acting (HMP Range)

ATOS Pressure Relief Module - Direct Acting (HMP Range)

ATOS CETOP 3 Direct Acting Pressure Relief Module ISO 4401 Upto 35 LPM Flow - Also available, Hand Wheel Adjustment and 4 - 50 BAR Spring on request

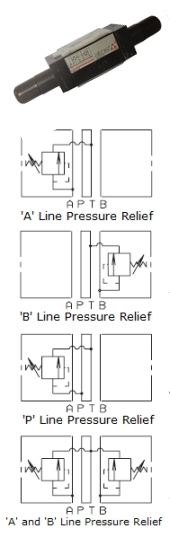

Sets maximum pressure in either 'A', 'B' or 'P' Lines. Option to set maximum pressure in 'A' and 'B' Lines. Please select required option as per the hydraulic symbol below the image and then select your required pressure range.

Please select the required Pressure Range of the Valve Module. Use the Second Pressure Option ONLY for the Double Relief Valve ('A' and 'B' Line) Version. With the Double Relief Valve the First pressure option will be on the 'A' Line. This option is on the 'A', 'B' or 'P' Lines for the single versions.

atos hydraulic valves, atos valve, atos pressure relief valve, atos relief module, atos relief valve, atos relief valves, atos HMP Valve, Atos HMP valve, Atos HMP, cetop 3 relief valve, cetop 3 relief module, hydraulic valves, hydraulic valve modules, hydraulic check valve, hydraulic check module

Relief Valve Version
'A' Line (HMP-013) £142.00'B' Line (HMP-014) £142.00'P' Line (HMP-011) £142.00
'A' and 'B' Line (HMP-012) £153.00
Pressure Range Options
(100) 3 - 100 BAR(210) 10 - 210 BAR (350) 15 - 350 BAR
'B' Line Pressure Range Option ('A' and 'B' Version Only)
Not Required
(100) 3 - 100 BAR(210) 10 - 210 BAR (350) 15 - 350 BAR

ATOS Pressure Relief Module - Double Stage (HM Range)

ATOS Pressure Relief Module - Double Stage (HM Range)

ATOS CETOP 3 Double Stage Pressure Relief Module ISO4401 for High Flow Applications upto 60 LPM Flow - Also available, Hand Wheel Adjustment and 4 - 50 BAR Spring on request

Sets maximum pressure in either 'A', 'B' or 'P' Lines. Option to set maximum pressure in 'A' and 'B' Lines. Please select required option as per the hydraulic symbol below the image and then select your required pressure range.

Please select the required Pressure Range of the Valve Module. Use the Second Pressure Option ONLY for the Double Relief Valve ('A' and 'B' Line) Version. With the Double Relief Valve the First pressure option will be on the 'A' Line. This option is used on the 'A', 'B' or 'P' Lines for the single versions.

atos hydraulic valves, atos valve, atos pressure relief valve, atos relief module, atos relief valve, atos relief valves, atos HM Valve, Atos HM valve, Atos HM, cetop 3 relief valve, cetop 3 relief module, hydraulic valves, hydraulic valve modules, hydraulic check valve, hydraulic check module

Relief Valve Version
'A' Line (HM-013) £148.00'B' Line (HM-014) £148.00'P' Line (HM-011) £148.00'A' and 'B' Line (HM-012) £284.00
Pressure Range Options
(100) 3 - 100 BAR(210) 10 - 210 BAR (350) 15 - 350 BAR
'B' Line Pressure Range Option ('A' and 'B' Version Only)
Not Required
(100) 3 - 100 BAR(210) 10 - 210 BAR (350) 15 - 350 BAR

ATOS Flow Control Module (HQ Range)

ATOS Flow Control Module (HQ Range)

ATOS Flow Control Module for use with CETOP3 Hydraulic Valves - Flow Control upto 80 LPM, Maximum 350 BAR Pressure.

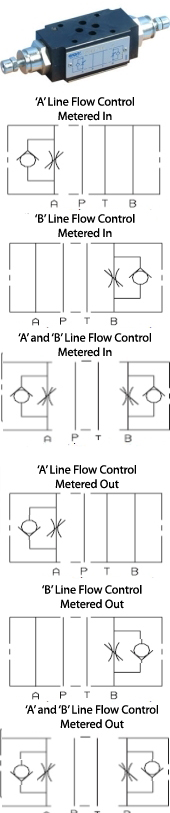

This module can be used to regulate flow in the 'A' 'B' or 'P' Lines. The Double Acting Version allows flow to be regulated in both the 'A' and 'B' Lines. Please Select the version required as per the hydraulic symbols below image.

Valve Meters FLOW IN (HQ23, HQ24 and HQ22) or Meters FLOW OUT (HQ13, HQ14, HQ12). The Symbols in the image show FLOW METERED IN

atos hydraulic valves, atos valve, atos flow control valve, atos flow control module, atos flow valve, atos flow control valves, atos HQ Valve, Atos HQ valve, Atos HQ, cetop 3 relief valve, cetop 3 relief module, hydraulic valves, hydraulic valve modules, hydraulic flow valve, hydraulic flow control module

Valve Module Version
'A' Line Meter Out Flow Control (HQ13) £114.00'B' Line Meter Out Flow Control (HQ14) £114.00'A' and 'B' Lines Meter Out Flow Control (HQ12) £125.00
'A' Line Meter In Flow Control (HQ23) £114.00'B' Line Meter In Flow Control (HQ24) £114.00'A' and 'B' Line Meter In Flow Control (HQ22) £125.00
