Telescopic hydraulic cylinders

15 Tonne Telescopic Cylinders

OUT OF STOCK

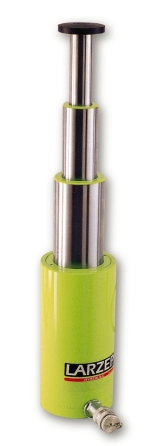

700 BAR 15 Tonne Telescopic Hydraulic Cylinders
2 and 3 Stage Lift Options (15 Tonnes Smallest Final Section)

2 Stage Lift Cylinder

Maximum Stroke of 300mm over 2 Sections
150mm Stroke on 1st Section (43 Tonnes) then upto
300mm Stroke on 2nd Section (16 Tonne)

3 Stage Lift Cylinder

Maximum Stroke of 500mm over 3 Sections
170mm Stroke on 1st Section (84 Tonnes) then upto
340mm Stroke on 2nd Section (43 Tonnes) then upto
500mm Stroke on 3rd Section (15 Tonnes)

Suitable for use with all 700 BAR pumps in our Hydraulic Pumps Product Section

Quantity:

No. of Stages

2 Stage Telescopic Cylinder £1,670.00

3 Stage Telescopic Cylinder £3,565.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE

Related products:

30 Tonne Telescopic Cylinder

OUT OF STOCK

700 BAR 30 Tonne Telescopic Hydraulic Cylinders
2 and 3 Stage Lift Options (30 Tonnes Smallest Final Section)

2 Stage Lift Cylinder

Maximum Stroke of 300mm over 2 Sections
150mm Stroke on 1st Section (65 Tonnes) then upto
300mm Stroke on 2nd Section (30 Tonne)

3 Stage Lift Cylinder

Maximum Stroke of 600mm over 3 Sections
200mm Stroke on 1st Section (1380 Tonnes) then upto
400mm Stroke on 2nd Section (65 Tonnes) then upto
600mm Stroke on 3rd Section (30 Tonnes)

Suitable for use with all 700 BAR pumps in our Hydraulic Pumps Product Section

Quantity:

No. of Stages

2 Stage Telescopic Cylinder £2,435.00

3 Stage Telescopic Cylinder £3,995.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE
