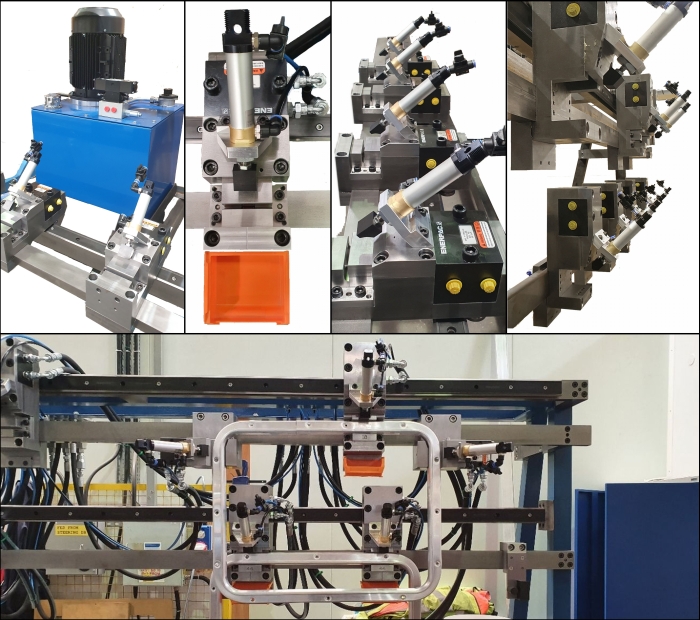

Automated Production Punch Machine
700 BAR Stainless Cylinders
Special production punch machine custom designed for punching aluminium frames. The system used 14 Enerpac block cylinders in tooling with die and stripper plates, using pneumatic cylinders to clamp the frame in place. The electro-pneumatic control system fully automated the punch process from start to finish with a 2 handed control and light curtain for safety. Designed to run 12 hours per day, the power unit delivers 12 LPM flow at 300 BAR.
Specification:
. Enerpac Block Cylinders delivering 5 and 8 tonnes
. 14x block cylinders independently selected via ball valves.
. Fully automated cycle from clamp to release
For production power units and automated systems please contact us: enquiries@hydraulics2u.co.uk
Special production punch machine custom designed for punching aluminium frames. The system used 14 Enerpac block cylinders in tooling with die and stripper plates, using pneumatic cylinders to clamp the frame in place. The electro-pneumatic control system fully automated the punch process from start to finish with a 2 handed control and light curtain for safety. Designed to run 12 hours per day, the power unit delivers 12 LPM flow at 300 BAR.
Specification:
. Enerpac Block Cylinders delivering 5 and 8 tonnes
. 14x block cylinders independently selected via ball valves.
. Fully automated cycle from clamp to release
For production power units and automated systems please contact us: enquiries@hydraulics2u.co.uk
121

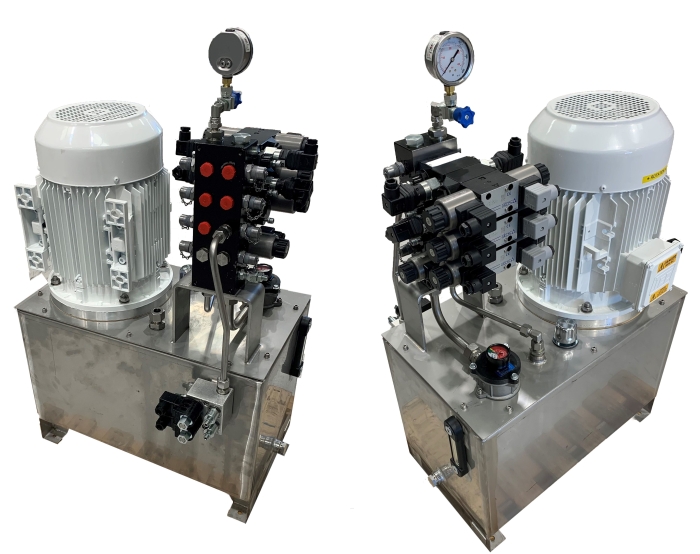

Stainless Hydraulic Power Units
700 BAR Stainless Cylinders
Special steel power units for food application operating machines that incorporate two banks of locking swing cylinders along with sliding positioning cylinders. The unit features an approach valve to slow the positioning cylinder on extend and retract. The cylinders used in built position sensors to signal the approach valve to slow for the final 20mm of extend and retract movement.
Specification:
. 304 Stainless Construction
. 200 BAR working pressure delivering 33LPM flow.
. PO check locking valves and flow control modules with pressure switches and test points mounted under solenoid valves
. Special motor paint finished in RAL9003
For stainless steel power units please contact us: enquiries@hydraulics2u.co.uk
Special steel power units for food application operating machines that incorporate two banks of locking swing cylinders along with sliding positioning cylinders. The unit features an approach valve to slow the positioning cylinder on extend and retract. The cylinders used in built position sensors to signal the approach valve to slow for the final 20mm of extend and retract movement.
Specification:
. 304 Stainless Construction
. 200 BAR working pressure delivering 33LPM flow.
. PO check locking valves and flow control modules with pressure switches and test points mounted under solenoid valves
. Special motor paint finished in RAL9003
For stainless steel power units please contact us: enquiries@hydraulics2u.co.uk
121
700 BAR Stainless Hydraulic Cylinders
700 BAR Stainless Cylinders
Special hydraulic mast jack cylinders, these cylinders are made in 316 stainless, rated to 700 BAR with front flange mounting in the mast base. Capable of generating 10 tonnes force at 700 BAR they have a 105mm stroke and are a special version of an Enerpac RC104 cylinder.
Specification:
. 316 Stainless Construction
. 700 BAR working pressure.
. 105mm Stroke
. Special Front Flange
For special high pressure stainless cylinders please contact us: enquiries@hydraulics2u.co.uk
Special hydraulic mast jack cylinders, these cylinders are made in 316 stainless, rated to 700 BAR with front flange mounting in the mast base. Capable of generating 10 tonnes force at 700 BAR they have a 105mm stroke and are a special version of an Enerpac RC104 cylinder.
Specification:
. 316 Stainless Construction
. 700 BAR working pressure.
. 105mm Stroke
. Special Front Flange
For special high pressure stainless cylinders please contact us: enquiries@hydraulics2u.co.uk
RC104

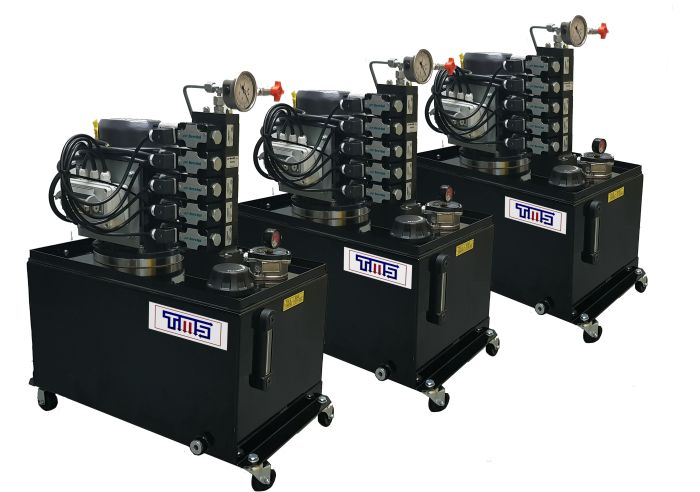

Injection Moulding Power Units
Injection Moulding Power Units
Low Pressure Power Units - 15LPM @ 100 BAR
415V 3 Phase Eletcric Motors
5 Station Valve Manifold for operation of 5 cylinder banks
System relief and unloader valves
Harting connection for quick plug and play into plc system
If you have a power unit or system requirement please e-mail requirements to enquiries@hydraulics2u.co.uk
Low Pressure Power Units - 15LPM @ 100 BAR
415V 3 Phase Eletcric Motors
5 Station Valve Manifold for operation of 5 cylinder banks
System relief and unloader valves
Harting connection for quick plug and play into plc system
If you have a power unit or system requirement please e-mail requirements to enquiries@hydraulics2u.co.uk
121

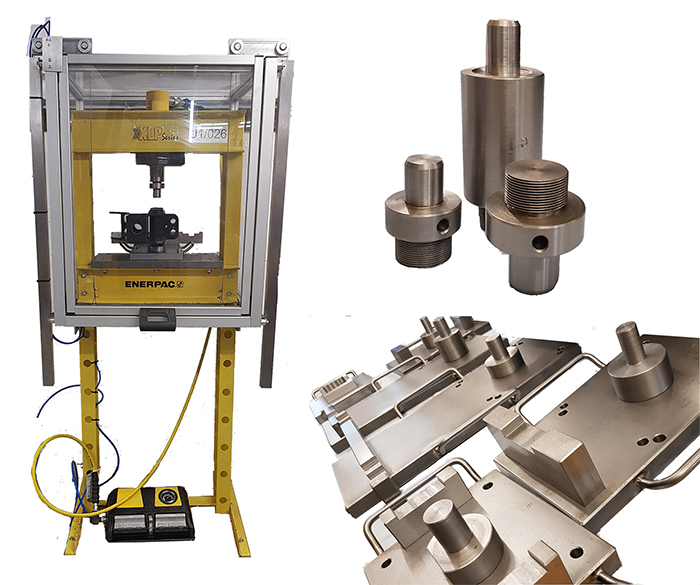

Safety Interlock Hydraulic Press
20 Tonne Safety Interlock Hydraulic Bearing Press
Interchangeable tooling for a range of products and bearings
Pneumatic safety interlock on sliding guard door
Perspex press guard
Base and top toolings
Air/Hydraulic Foot Pump
This 20 tonne hydraulic press offers a completely safe and efficient solution to pressing a variety of bearings and bushes into a large range of components. Designed and built by us, this high precision and fast acting press increases the productivity and time for completing many components, quickly and efficiently.
Interchangeable tooling for a range of products and bearings
Pneumatic safety interlock on sliding guard door
Perspex press guard
Base and top toolings
Air/Hydraulic Foot Pump
This 20 tonne hydraulic press offers a completely safe and efficient solution to pressing a variety of bearings and bushes into a large range of components. Designed and built by us, this high precision and fast acting press increases the productivity and time for completing many components, quickly and efficiently.
122
Special Stainless Steel Cylinders
50mm Bore x 30mm Rod x 500mm Stroke in 316 Stainless with Position Sensors front and rear. These Foot Mounted stainless hydraulic cylinders were used in a pharmaceutical application with high precision control requring the small 40mm Bore 50mm Stroke Clamping Cylinders, again with dual Position Sensors.
