HC-M45 Hydraulic Monoblock Valve

HC-M45 Hydraulic Monoblock Valve

3/8" BSP Hydraulic Monoblock Valave in 1 to 6 Sections with Parallel Circuit and Lever Operation
Upto 45 LPM Flow with a Working Pressure of 350 BAR - All Valves supplied with Adjustable Main Relief Valve

Spool Stroke 5+5mm, Spool Pitch 35mm - All Valves Supplied with 210mm Long Striaght Handles, others available on request.

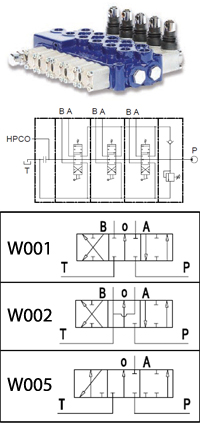

For the Correct Options please select the Number of Valve Sections, Spool Configuartion using the Code in Image on the left, Spring or Detented Lever Operation and with or without High Pressure Carry Over.

For special versions of this valve using different spools and operation please contact us: enquiries@hydraulics2u.co.uk. The full manufacturer catalogue can be downloaded at the bottom of this page.

Valve Sections
1 - £84.002 - £137.003 - £184.00
4 - £235.005 - £295.006 - £345.00
High Pressure Carry Over
Without HPCO (+£0.00)With HPCO (+£20.00)
Spool Type
W001A (Closed centre) (+£0.00)W002A (Open Centre) (+£25.00)
W005A (Single Acting Closed) (+£25.00)
Lever Type
Sprung Lever (+£0.00)Detented Lever (+£25.00)

FOR OVERVIEW CATALGOUE PAGE PLEASE CLICK HERE

HC-D10 Hydraulic Monoblock Valve

HC-D10 Hydraulic Monoblock Valve

1/2" BSP Hydraulic Monoblock Valave in 1 to 6 Sections with Parallel Circuit and Lever Operation
Upto 55 LPM Flow with a Working Pressure of 350 BAR - All Valves supplied with Adjustable Main Relief Valve

Spool Stroke 5+5mm, Spool Pitch 35mm - All Valves fitted with 210mm long Stright Levers, others available on request.

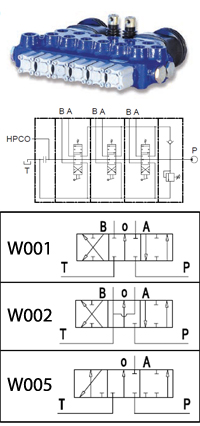

For the Correct Options please select the Number of Valve Sections, Spool Configuartion using the Code in Image on the left, Spring or Detented Lever Operation and with or without High Pressure Carry Over.

For special versions of this valve using different spools and operation please contact us: enquiries@hydraulics2u.co.uk. The full manufacturer catalogue can be downloaded at the bottom of this page.

Valve Sections
1 £125.002 £175.003 £240.00
4 £310.005 £365.006 £425.00
Spool Type
W001A (Closed centre) (+£0.00)W002A (Open Centre) (+£0.00)
W005A (Single Acting Closed) (+£0.00)
High Pressure Carry Over
Without HPCO (+£0.00)With HPCO (+£20.00)
Lever Type
Sprung Lever (+£0.00)Detented Lever (+£25.00)

FOR OVERVIEW CATALGOUE PAGE PLEASE CLICK HERE

Monoblock Special Valves (HC-M45)

Monoblock Special Valves (HC-M45)


Full catalogue information for the HC-M45 Range of Hydrocontrol Monoblock Valves

Full technical data and the many options for these valve are contained in this catalogue

FOR FULL CATALOGUE OF M45 PRODUCT OPTIONS PLEASE CLICK HERE

Monoblock Special Valves (HC-D10)

Monoblock Special Valves (HC-D10)


Full catalogue information for the HC-D10 Range of Hydrocontrol Monoblock Valves

Full technical data and the many options for these valve are contained in this catalogue

FOR FULL CATALOGUE OF M45 PRODUCT OPTIONS PLEASE CLICK HERE
